When installing our fuel quantity sensors, it’s important to know the difference between bonding strap ground and signal ground:

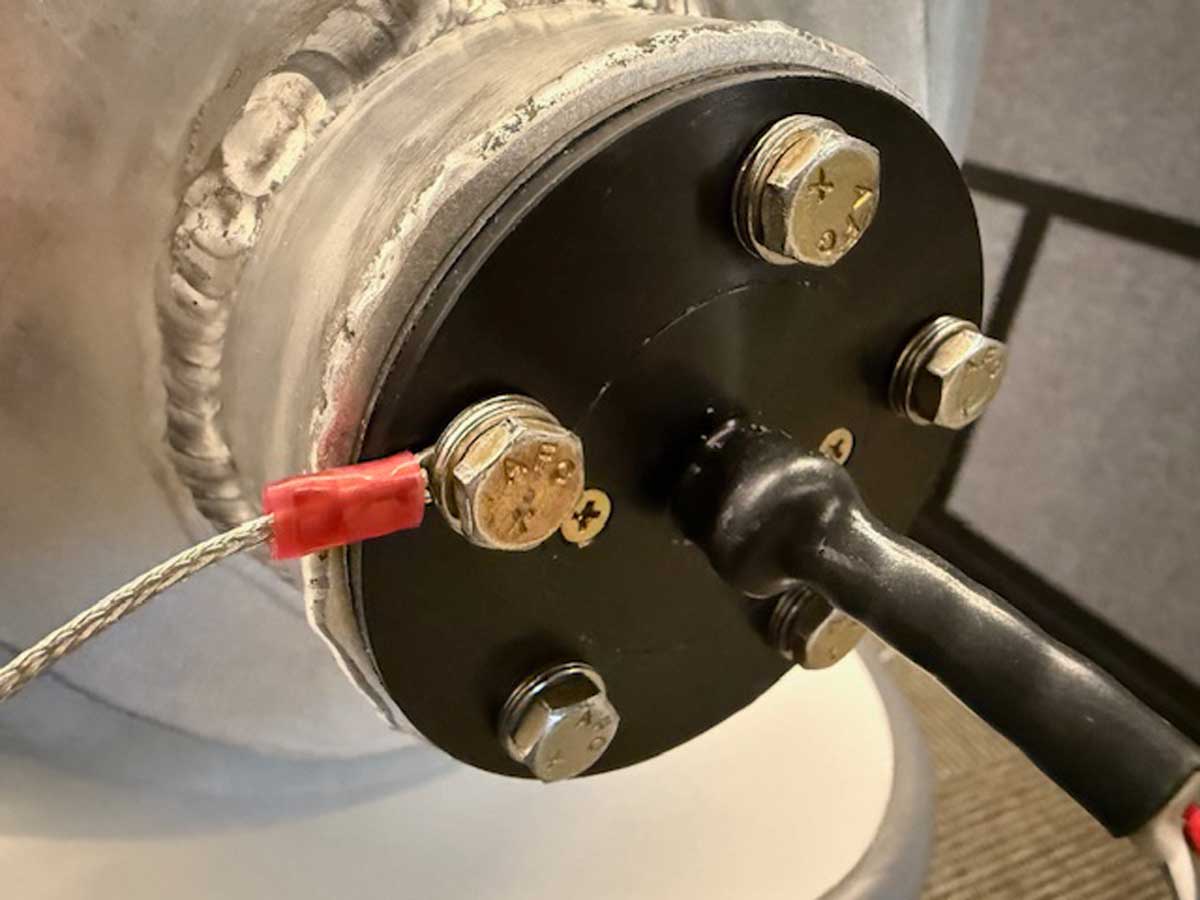

Bonding Strap Ground
A physical strap that ties the sensor body to the aircraft structure. This provides static discharge and EMI protection — shielding the sensor from noise.

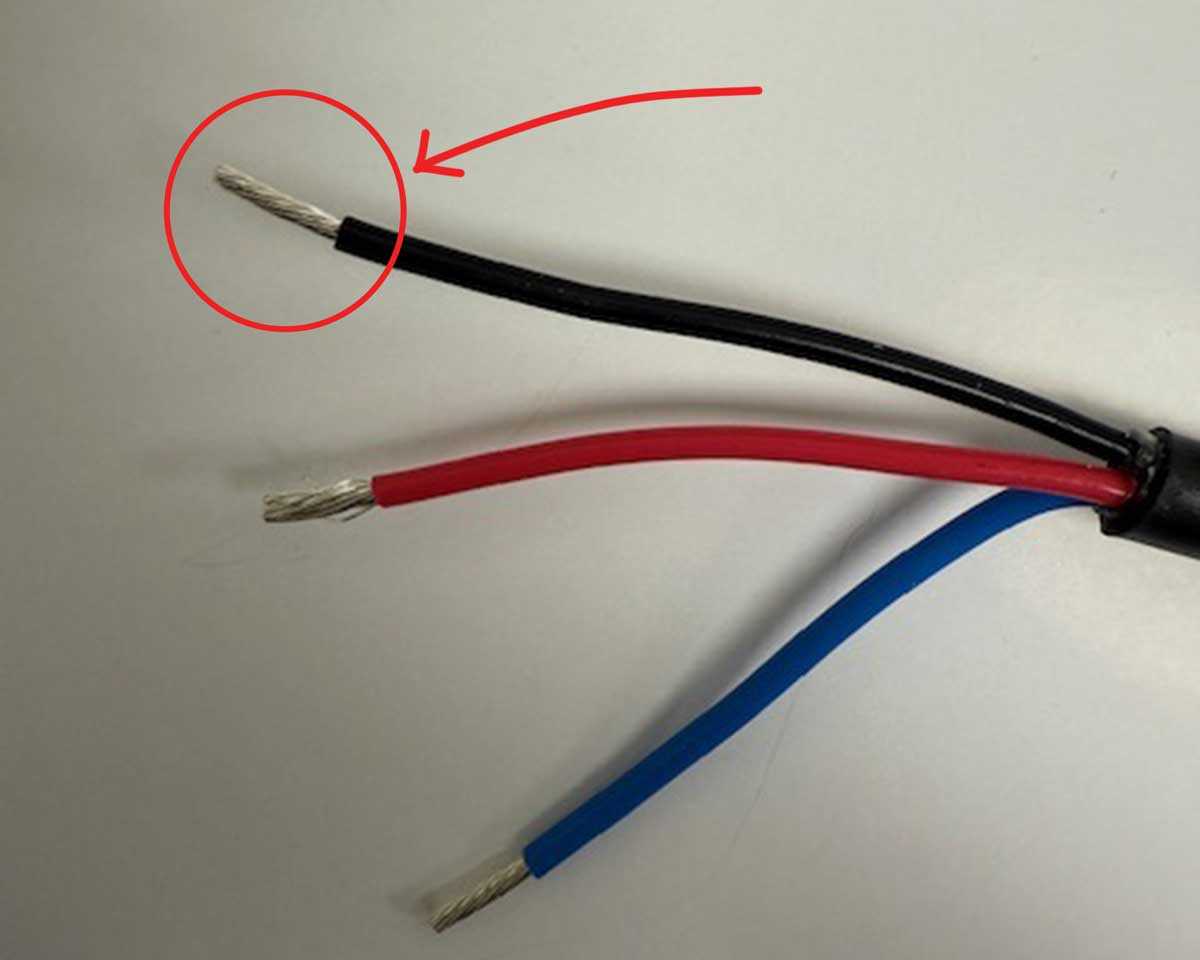

Signal Ground
The black wire on your sender wiring harness. This connects to the aircraft’s electrical system ground, providing a clean reference for accurate data to your avionics.

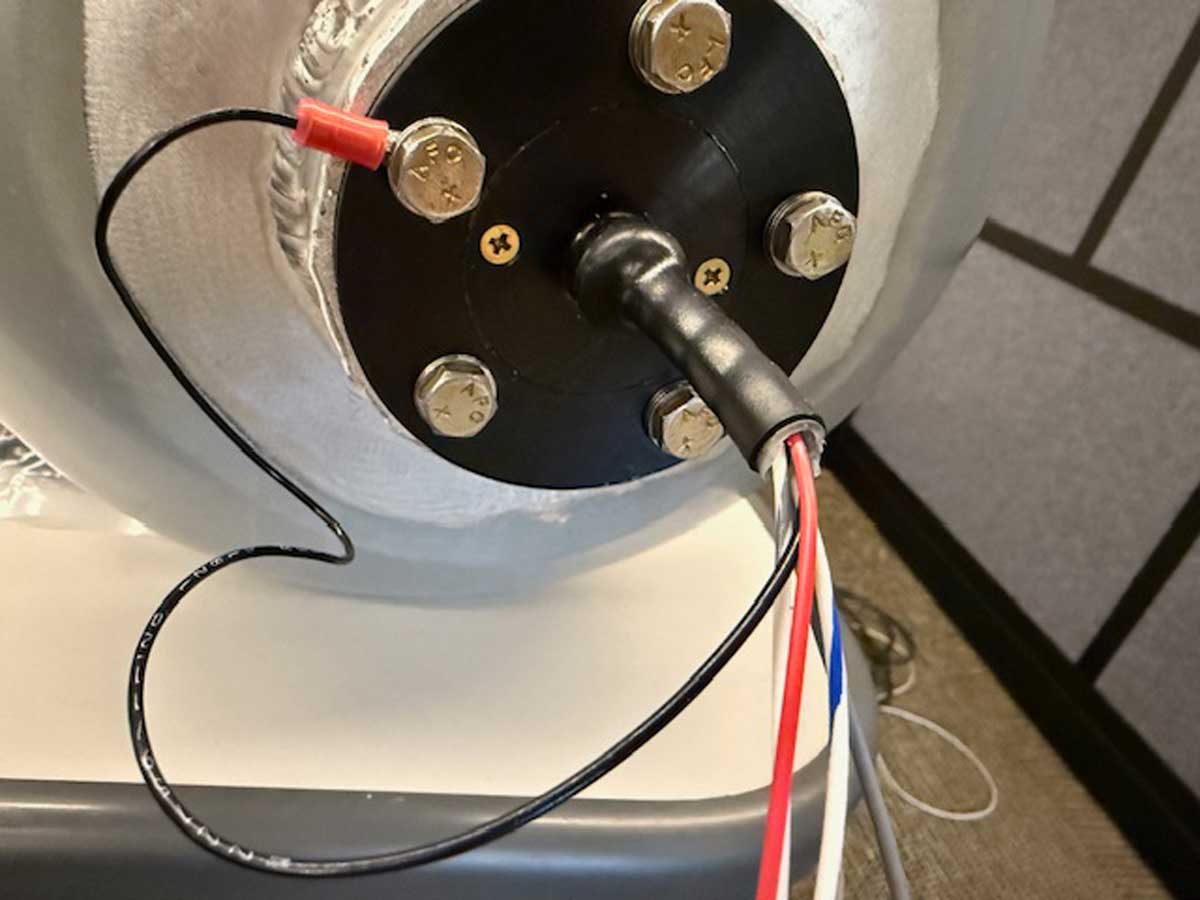

The Incorrect Way
Installers could mistakenly connect the signal ground to the top of the unit, where only the bonding strap belongs.
👉 This causes electrical noise, unreliable signal readings, and can even lead to erratic fuel indications.
The Correct Way
- Strap Ground → to Airframe Structure
- Signal Ground → to Avionics System Ground
Need further assistance?
Or call us at +1 541-977-1043.

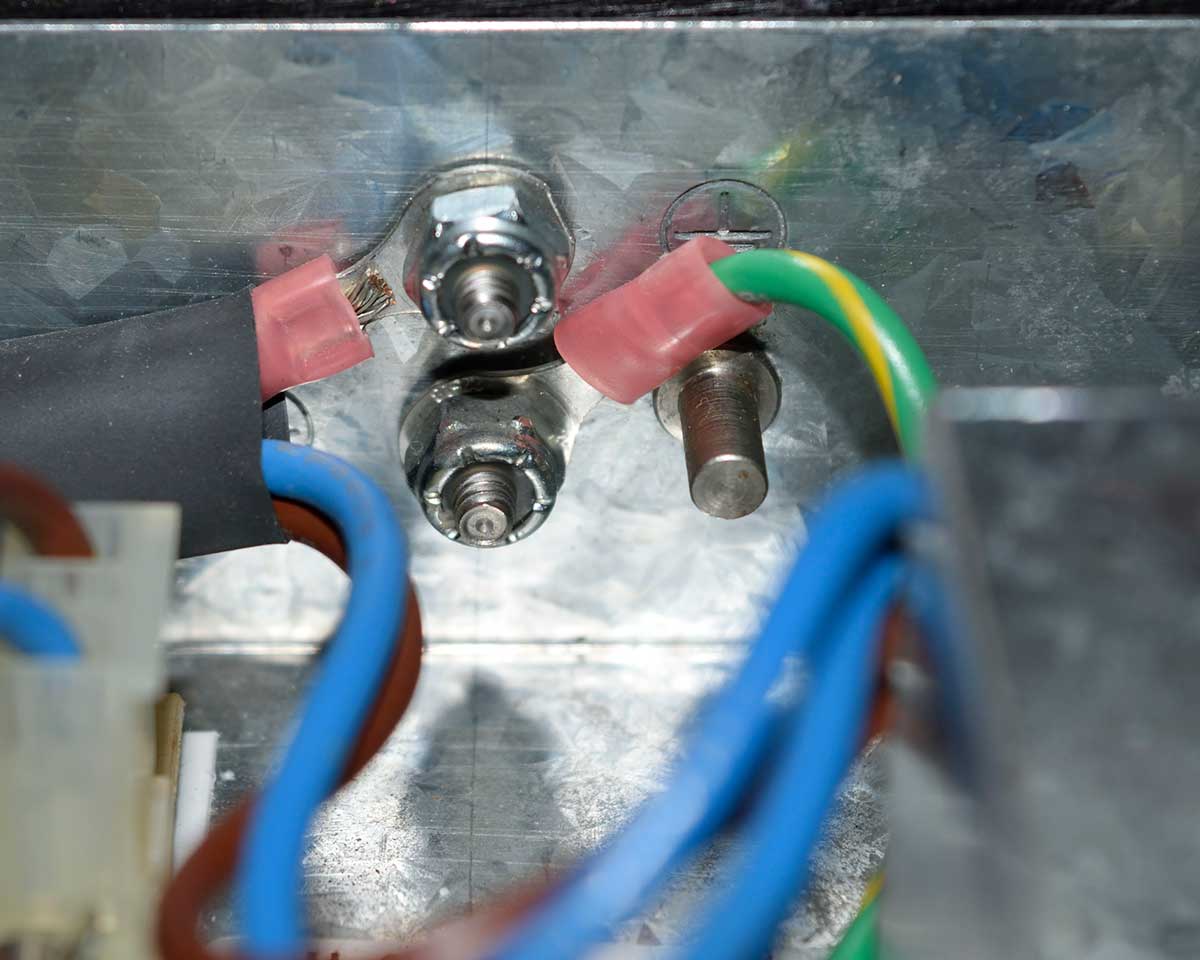

Photo Attribution of Bonding Strap Ground:
